New
AP-mO/3
4689101Adapter for VAMP condensate pumps, 3 pcs.
Quick and easy to install, highly versatile, exceptionally quiet, and the smallest of its kind on the market – this is the new condensate pump from the VAMP series. It combines innovative technology with practical benefits. Proven and interference-resistant optical sensor technology is paired with the reliable and silent operation of a diaphragm pump. In the development process, we focused on using as few components as possible to make installation and handling easy and fast for the user. The VAMP-F features an integrated reservoir and an optical level sensor, making it the smallest model on the market.
- Quiet Operation: Thanks to advanced diaphragm pump technology and effective vibration dampening, the pump operates at less than 18 dB(A)
- Easy and Quick Installation: The adjustable hose serves as a reservoir replacement (with filter and adapter) for direct connection to the condensate tray
- Minimal Space Requirement: Standing at just 1 inch tall, it fits even in the tightest spaces
- Pump Capacity: Handles up to 6 gallons per hour
- Lift Height: Capable of up to 50 ft
- Versatile Applications: Suitable for wall-mounted units, ceiling units, and floor units
- Integrated Switching Power Supply: Operates universally with input voltages ranging from 100-240 VAC
- Optical Level Sensing Technology: Reliable operation ensured by proven optical sensors
- Readily Available Accessories: All necessary accessories are quickly accessible
- Swiss Quality Assembly
How can REFCO help you?
- 6 GPH
- 50 ft
- 246 ft at 0 ft head and 0 ft suction
- 18 dB(A)
- Diaphragm type
- 1/4 ″
- 100 - 240 VAC
- 50Hz/60Hz
- 6 W
- 0.6 W
- II
- Normally-closed, failsafe 250 VAC, 5 A or 30 VDC, 5 A
- IP44
- 37 °F – 104 °F
- 37 °F – 104 °F
- -4 °F – 158 °F
- Cardboard box
- Posable hose with filter. Installation cable. Anti-siphon valve. Vent tube. Cable ties. Quick guide.
- Polyamide | FR-4
- black
- IEC 60335-1,
IEC 60335-2-41,
UL 778,
CSA C22.2 #108 - Yes
- 0.14
- 26
- 128
- 30
- 0.35
- 140
- 240
- 57
- 0.21
- 8413.8100
- What should I consider when installing, using, and maintaining the VAMP-F condensate pump?Copy link

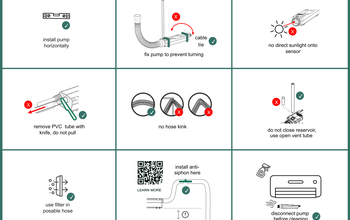

The following image contains important information you should carefully consider when installing, using, and maintaining the VAMP-F condensate pump.
- Is there a check valve installed in the VAMP condensate pump?Copy link
The VAMP condensate pumps have an integrated backflow prevention.
The pumps are 100% tested for backflow prevention.
- For which connection diameters is the extendable flexible hose with filter suitable?Copy link
The extendable flexible hose with filter is suitable for connection diameters of 0.59 inch, 0.67 inch, and 0.787 inch. This makes it compatible with nearly all standard condensate outlets used by established air-conditioning manufacturers.
The connection end of the extendable hose is made of flexible silicone, allowing it to be easily pushed onto the condensate discharge outlets of the air-conditioning units.
For further details, please refer to the attached image.
