New
AP-mO/3
4689101Adapter for VAMP condensate pumps, 3 pcs.
Quick and easy to install, highly versatile, exceptionally quiet, and the smallest of its kind on the market – this is the new condensate pump from the VAMP series. It combines innovative technology with practical benefits. Proven and interference-resistant optical sensor technology is paired with the reliable and silent operation of a diaphragm pump. In the development process, we focused on using as few components as possible to make installation and handling easy and fast for the user. In the VAMP-X, the sensor is located in an external reservoir, giving the user maximum flexibility. The adapter plug enables seamless integration into existing installations, making it an ideal replacement for other condensate pumps.
- Minimal space requirement: Standing at just 1 inch height, it fits even in the tightest spaces
- Quiet operation: Advanced diaphragm pump technology and effective vibration dampening keep the pump operating at less than 18 dB(A)
- Tool-Free Installation: The flexible hose acts as a reservoir replacement (with filter and adapter) for direct connection to the condensate tray
- Versatile applications: Compatible with wall-mounted, ceiling, and floor units
- Pump capacity: Handles up to 6 gallons per hour
- Discharge height: Capable of pumping up to 50 feet vertically
- Integrated switching power supply: Operates universally with input voltages ranging from 100–240 VAC
- Optical level sensing technology: Proven optical sensors ensure reliable operation
- Easy retrofitting: Adapter plug for existing installations
- Spare parts and accessories available
- Sustainable: Housing made from plant-based material
- Manufactured in Switzerland
How can REFCO help you?
- 6 GPH
- 50 ft
- 15 ft
- 246 ft at 0 ft head and 0 ft suction
- 18 dB(A)
- Diaphragm type
- 1/4 ″
- 100 - 240 VAC
- 50 / 60 Hz
- 6 W
- 0.6 W
- II
- Normally-closed, failsafe 250 VAC, 5 A or 30 VDC, 5 A
- IP44
- 37 °F – 104 °F
- 37 °F – 104 °F
- -4 °F – 158 °F
- Cardboard box
- Pump
Posable hose with filter
Installation cable
Sensor with sensor cable
Suction tube
Anti-siphon valve
Vent tube
Cable ties
Quick guide - Polyamide | FR-4
- black
- IEC 60335-1,
IEC 60335-2-41,
UL 778,
CSA C22.2 #108 - Yes
- 0.13
- 26
- 122
- 30
- 0.47
- 140
- 240
- 57
- 0.34
- 8413.8100
- What should I consider when installing, using, and maintaining the VAMP-X condensate pump?Copy link

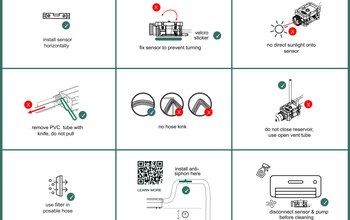

The following image contains important information you should carefully consider when installing, using, and maintaining the VAMP-X condensate pump.
- Is there a check valve installed in the VAMP condensate pump?Copy link
The VAMP condensate pumps have an integrated backflow prevention.
The pumps are 100% tested for backflow prevention.
- For which connection diameters is the extendable flexible hose with filter suitable?Copy link
The extendable flexible hose with filter is suitable for connection diameters of 0.59 inch, 0.67 inch, and 0.787 inch. This makes it compatible with nearly all standard condensate outlets used by established air-conditioning manufacturers.
The connection end of the extendable hose is made of flexible silicone, allowing it to be easily pushed onto the condensate discharge outlets of the air-conditioning units.
For further details, please refer to the attached image.
