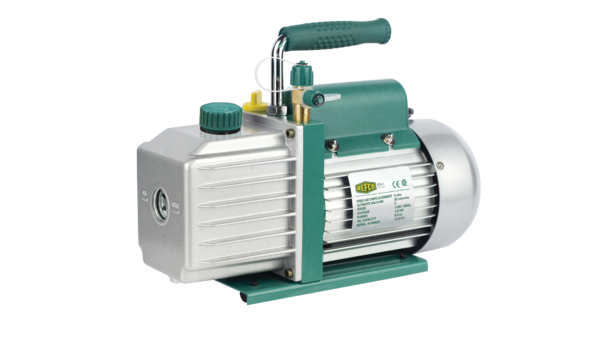

ECO-5

4667685
Two-stage vacuum pump
Add to Wish List

Our lightweight two stage vacuum pump for refrigeration applications.

  • Two-stage vacuum pump
  • Compact aluminium housing with stable handle
  • With 1/4" and 3/8" SAE connections for flexible use

How can REFCO help you?

  • Flow Rate
    5 cfm
  • End Vacuum
    15 micron
  • Number of Stages
    2
  • Voltage
    115 VAC
  • Frequency
    60Hz
  • Energy Consumption
    0.5 kW
  • Protection Class
    I
  • Oil Tank Volume
    9.5 oz
  • Cable Length
    78 ″
  • Gas Connection
    1/4" SAE | 3/8" SAE
  • Scope of Supply
    Vacuum pump oil
  • Packaging
    Cardboard box
  • Material
    Aluminium
  • Color
    grey | green
  • Net Weight [kg]
    10.6
  • Net Width [mm]
    124
  • Net Height [mm]
    240
  • Net Depth [mm]
    315
  • Gross Weight [kg]
    11.3
  • Gross Width [mm]
    200
  • Gross Height [mm]
    292
  • Gross Depth [mm]
    365
  • Packing Weight [kg]
    0.7
  • Customs Tariff Number
    8414.1000
  • Product Data Sheet
    Create Now
  • Instruction manual
    PDF
REFVAC-RC-digitales Vakuummessgerät 252 | © REFVAC-RC-digitales Vakuummessgerät 252

REFVAC-RC

4688541
Wireless digital vacuum gauge connection 1/4"SAE male, Units: Micron, mbar, Pa, Torr, mTorr, psi and inHg

HCL6-60-Y

9881313
Large diameter hose 3/8", yellow, 60"
  • ECO-5-60-FG
    On/Off switch
    Item Nr. 4678929
  • ECO-5-51
    Fan cover for ECO-5
    Item Nr. 4678954
  • ECO-5-49
    Fan blades for ECO-5
    Item Nr. 4678988
  • ECO-3/5-3
    Rubber feet
    Item Nr. 4667757
  • ECO-3/5-36.37\9-39.40
    Oil drain plug
    Item Nr. 4667774
  • ECO-3/5/9-9.10
    Handle
    Item Nr. 4667782
  • ECO-3/5-10.11\9-11.12
    Oil fill cap (yellow)
    Item Nr. 4667790
  • DV-44
    Oil for vacuum pumps RL-2/8 and ECO series
    Item Nr. 4495340
  • DV-45
    Oil for vacuum pumps RL-2/8 and ECO series
    Item Nr. 4495358
  • DV-46
    Oil for vacuum pumps RL-2/8 and ECO series
    Item Nr. 4495366
  • NFT5-4-K-GREEN
    Seal flare cap 1/4" for ECO-3/5/9
    Item Nr. 4676110
  • NFT5-6-K-GREEN
    Seal flare cap 3/8" for ECO-5/9
    Item Nr. 4676128
