New

ECO-9-A2L

4689189

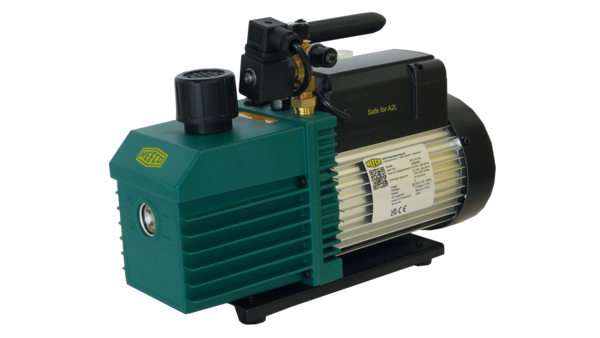

Two-stage vacuum pump, safe for A2L gases 115V

The two-stage vacuum pumps of the ECO series are suitable for all common refrigerants including A2L. They feature a compact aluminum housing with a sturdy handle. The high pumping capacity reduces evacuation time significantly, yet they operate very quietly.

An integrated solenoid valve prevents the loss of the already generated vacuum in case of accidental shutdown.

Additionally, the pumps come equipped with 1/4" and 3/8" SAE flare Intake port, allowing for flexible hose selection and compatibility with various systems. Moreover, they are easy to operate and maintenance-friendly.

A2L suitable
Integrated solenoid valve prevents vacuum loss during accidental shutdowns
Easy to start
Compact design with aluminium housing and easy to grip carrying handle
Very quiet operation
High pumping capacity reduces evacuation time
Both 1/4" and 3/8" SAE flare inlet connections allow for flexibility of connections
Vacuum pump oil included

How can REFCO help you?

Flow Rate
9 cfm
End Vacuum
15 micron
Number of Stages
2
Voltage
115 VAC
Frequency
60Hz
Energy Consumption
1 HP
Protection Class
I
Oil Tank Volume
17 oz
Gas Connection
1/4" SAE | 3/8" SAE
Scope of Supply
Vacuum pump oil
Packaging
Cardboard box
Material
Steel
Color
yellow (RAL 1023) | green (RAL 6026) | grey (RAL 7040)
RoHS Conformity
Yes

Net Weight [kg]
16.9
Net Width [mm]
145
Net Height [mm]
257
Net Depth [mm]
395
Gross Weight [kg]
19.1
Gross Width [mm]
235
Gross Height [mm]
305
Gross Depth [mm]
485
Packing Weight [kg]
2.2
Customs Tariff Number
8414.1000

Product Data Sheet
Create Now
Instruction manual
PDF
Quick Guide
PDF
